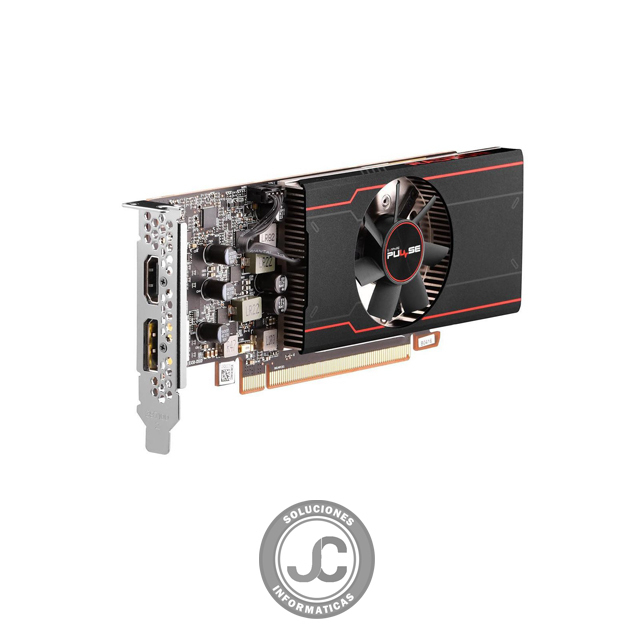

GPU AMD Radeon™ RX 6400 Graphics Card
6nm GPU
AMD RDNA™ 2 Architecture
Engine Clock
- Boost Clock: Up to 2321 MHz
- Game Clock: Up to 2039 MHz
Stream Processors 768
Infinity Cache 16MB
Ray Accelerators 12
Memory Size/Bus 4GB GDDR6
Memory Clock 16 Gbps Effective
Displays Maximum 2 Displays
Resolution
- HDMI™: 7680×4320
- DisplayPort1.4: 7680×4320
Interface PCI-Express 4.0
Output
BIOS Support
Game Index 1080P
Sapphire Features
- Fuse Protection
- Axial Fan Cooling Technology
- TriXX Supported
- TriXX Boost
- ATX Bracket Accessory
AMD Features
- AMD RDNA 2 Gaming Architecture
- DirectX 12 Ultimate support
- AMD Smart Access Memory Technology
- AMD Infinity Cache Memory Technology
- 6nm GPU
- PCI Express 4.0 Support
- AMD FreeSync Technology
- DisplayPort 1.4 with DSC
- HDMI support
- Video Streaming up to 8K
- AMD Radeon VR Ready Premium
- AMD FidelityFX
- AMD Radeon Image Sharpening
- AMD Radeon Anti-Lag
- AMD Software: Adrenalin Edition
- Game Driver Optimizations
Cooling Axial Fan Cooling
Form Factor 1 slot, ATX
Low Profile
Dimension: 170(L)X 56.2(W)X 17.2(H)mm
Power Consumption 55W (Board Power)
OS Linux®, Windows® 7*, Windows® 10, and Windows 11 64-bit operating system required
*Does not support all features including but not limited to Hardware Raytracing
System Requirement
- Minimum 350 Watt Power Supply
- PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard.
- Minimum 8GB of system memory. 16GB recommended.
- A display with HDMI or DisplayPort is required
